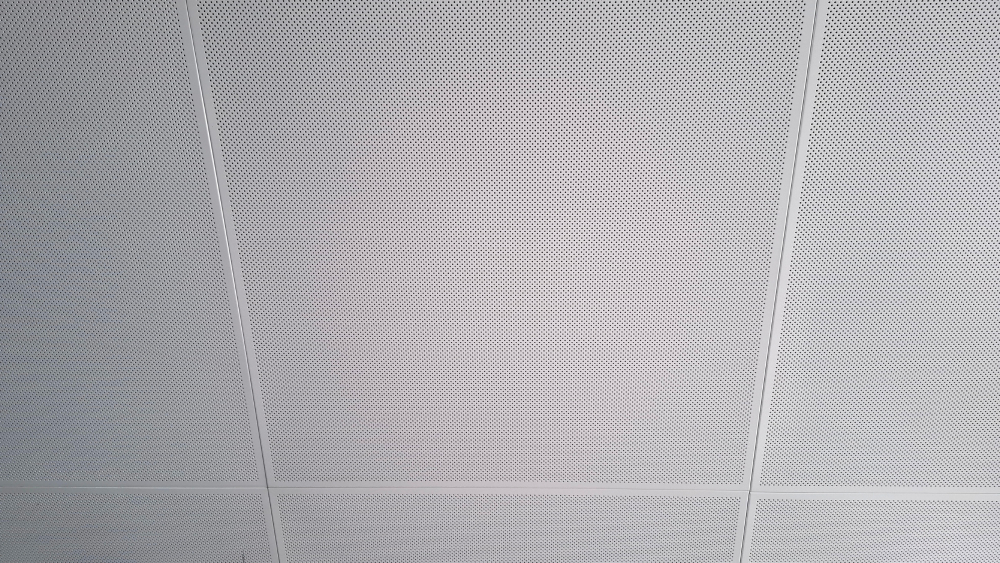

A fire-rated ceiling system is a complete ceiling assembly designed and tested to resist fire for a stated period. The rating applies to the full construction, including plasterboard layers, metal framing, suspension components, fixings, insulation where specified, joints, perimeter details, and treatments around openings.
That distinction matters. A fire-resistant board may form a major part of the ceiling, but the board alone does not establish the fire performance of the finished assembly. Designers and contractors need to follow the tested system specification, including board thickness, number of layers, framing centres, fixing patterns and junction details.
Fire-rated ceilings are commonly specified where a building’s fire strategy requires separation between occupied areas, escape routes, service spaces, or adjoining fire compartments. The exact requirement depends on the building type, local regulations, and the approved project design.
Components of Fire-Resistant Ceiling Construction
Effective fire-resistant ceiling construction depends on several components working together. Changing one component, increasing framing centres or introducing an untreated opening can affect the performance established by the tested assembly.
For that reason, ceiling specifications should identify the complete system rather than listing individual materials without installation requirements.
Fire-Resistant Plasterboard and Its Role in the Assembly
Fire-resistant plasterboard forms the protective membrane in many ceiling systems. Its gypsum core contains chemically combined water, which is released as water vapour when the board is exposed to high temperatures. This process helps delay heat transfer through the construction.
Board type is only one part of the specification. Thickness, number of layers, joint arrangement, and fixing method all affect how the ceiling behaves during a fire test. Multiple board layers may be required where longer resistance periods are specified.
Mada Gypsum supplies fire-resistant boards as well as fire and moisture resistant plasterboards for internal wall and ceiling applications where both properties are required. The company’s product range includes boards developed for systems that need increased fire resistance, but the selected board should always be used as part of the relevant tested construction.
Metal Framing and Suspension Requirements
The metal framing and suspension requirements determine how the ceiling membrane is supported. Main channels, furring channels, hangers, threaded rods, perimeter sections, and fasteners need to match the system specification.
Spacing is particularly significant. If channels are positioned farther apart than the tested arrangement allows, the board may experience greater deflection and joint stress during a fire. The type and position of suspension components can also influence how loads are transferred as temperatures rise.
Mada Gypsum’s published monolithic ceiling information, for example, lists tested threaded-rod configurations with defined main-channel and furring-channel centres. The listed 60-minute and 120-minute systems use different quantities of fire-resistant board while retaining specified framing arrangements.
How Fire Resistance Is Measured in Minutes
A ceiling fire rating describes how long a tested construction satisfies defined performance criteria under standard fire-test conditions. You will often see fire resistance measured in minutes, such as 30, 60, 90, or 120 minutes.
The number refers to the assembly, not simply the thickness of a board. Testing considers how the complete construction performs when exposed to a controlled fire curve and whether the required criteria are maintained for the stated period.
Mada Gypsum lists monolithic ceiling configurations tested to EN 1364-2 for 60 and 120 minutes. A designer selecting one of these systems needs to reproduce the specified build-up rather than assume that adding a fire-resistant board to another ceiling creates the same result.
Where Fire-Rated Ceilings Are Required
The need for a fire-rated ceiling is established by the applicable building regulations, fire strategy and project specification. Building height, occupancy, compartment size, escape arrangements and the services passing through the construction can all affect the requirement.
Certain locations appear frequently in fire-rated designs because failure of the ceiling could allow fire or hot gases to spread into another part of the building.
Protected Escape Routes and Corridors
Protected escape routes are designed to give occupants a safer path towards an exit during a fire. Corridors, lobbies, and circulation routes may therefore require fire-resisting walls, doors, and ceilings as part of the overall enclosure.
The ceiling above a corridor deserves particular attention where the space above it contains services or connects with neighbouring areas. A ceiling that forms part of the fire-resisting boundary must remain continuous at lighting points, access panels, ducts, and perimeter junctions.
Corridor-spanning ceiling systems can also help where the design requires a clear ceiling zone without conventional hangers at frequent intervals. The selected arrangement still needs to match the tested or approved system for the project.
Plant Rooms and Service Areas
Plant rooms often contain electrical equipment, mechanical systems, pumps, generators, or other services that can influence the building’s fire strategy. Where these rooms form separate fire compartments, the surrounding walls and ceilings need to provide the resistance period stated in the design.
Services can make these ceilings more complicated than those in ordinary occupied rooms. Cable trays, pipes, ducts, and hangers may all pass through or connect with the construction.
Coordination should therefore happen before the ceiling is closed. Identifying penetrations early gives the contractor a better chance of using suitable tested details instead of cutting additional openings after installation.
Separating Compartments Within Buildings
Compartmentation limits the spread of fire and smoke from one part of a building to another. Walls, floors, and ceilings can all contribute to these boundaries depending on the building arrangement.
A fire-rated ceiling may be used below a structural element or as part of a tested horizontal separation. The design needs to show where the compartment line runs and how it connects to adjacent fire-resisting construction.
Small gaps at the perimeter can matter as much as large openings in the centre of the ceiling. If the membrane stops short of a wall, column, or service enclosure without the specified treatment, that interface can become a weak point.
Building Monolithic Ceiling Systems for Fire Safety
Monolithic ceiling systems use plasterboard fixed to a supporting metal framework to create a continuous finished surface. Depending on the tested build-up, the ceiling can be designed to provide fire resistance while also meeting architectural requirements for a smooth appearance.
Mada Gypsum publishes monolithic arrangements ranging from non-fire-rated ceiling options to tested 60-minute and 120-minute threaded-rod systems. Each construction has its own board, insulation, and framing specification.
Continuous Membrane Principles
Fire performance depends heavily on continuity. The plasterboard membrane needs to extend across the required area without gaps that fall outside the tested detail.
Board joints should be positioned and treated according to the system specification. Where multiple layers are required, joint locations may need to be staggered so that joints in successive layers do not line up.
The same principle applies around edges. A well-installed field of boards cannot compensate for an untreated perimeter or an opening that has been formed without an approved detail.
Junction Details and Perimeter Treatments
Ceiling-to-wall junctions are easy to overlook because they occupy a small part of the total ceiling area. During a fire, however, movement and thermal expansion can place these interfaces under stress.
The perimeter construction needs to follow the tested detail, including the correct framing, board termination, and sealant where specified. This is especially relevant where a fire-rated ceiling meets a partition, structural wall, column, or another rated assembly.
Movement should also be considered. If a joint is expected to move, the specified sealing product and joint geometry need to accommodate the movement stated in the system design.
Penetration Management Strategies
Every penetration interrupts the ceiling membrane. Downlights, pipes, ducts, sprinkler components, cable routes, and access panels should therefore be coordinated with the fire design before installation begins.
The correct treatment depends on the type of opening and the tested fire-stopping detail. A small cable penetration may require a different solution from a large duct or an access hatch.
Contractors should avoid treating fire sealant as a universal repair product for any opening. The penetration detail should identify the permitted opening size, service type, backing material where required, and the correct fire-stopping components.

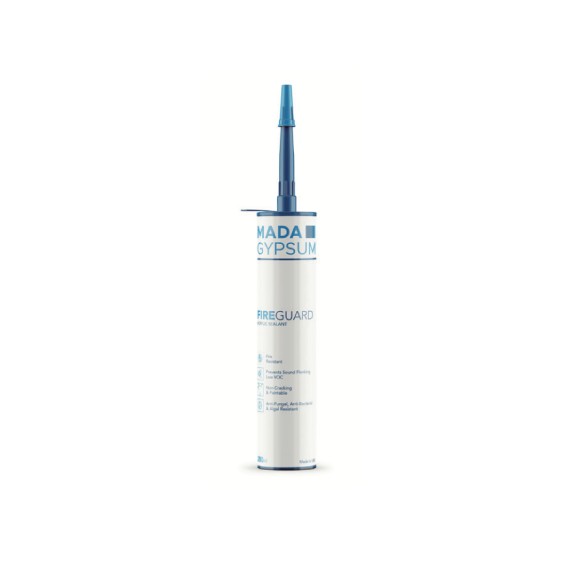

The Critical Role of Fire Guard Acrylic Sealant
Fire Guard Acrylic Sealant is used at selected joints, gaps, and penetrations where the fire-rated construction calls for a compatible seal.
Mada Gypsum describes its Fire Guard Acrylic Sealant as a component for fire-resistant drywall systems and identifies applications around pipes, wires, ducts, vents, cable lines, joints, and other penetrations. Its technical data also states that the product is intended for internal perimeter use and should be installed according to the specified design.
Sealing Perimeters and Movement Joints
Perimeter seals close the small gaps that can occur where plasterboard construction meets another surface. Without the required treatment, these gaps can create a route for smoke, hot gases, and heat.
Sealant installation needs proper surface preparation and the correct joint dimensions. Mada Gypsum’s technical data sheet calls for surfaces to be clean, dry and free from loose material, dust, oil, and other contaminants before application. It also specifies backing material or joint filler where needed to achieve the required depth-to-width ratio.
The product is intended for locations where slight joint movement is anticipated. Larger or more demanding movement joints need the solution stated in the approved system rather than an assumed substitute.
Managing Service Penetrations
Services are one of the most common reasons that a finished fire-resisting membrane is interrupted. A ceiling can be installed correctly and then compromised later if new cables, pipes, or ducts are added without suitable fire-stopping.
Mada Fire Guard Acrylic Sealant can be used in specified fire-blocking applications around penetrations. The manufacturer’s technical data refers to annular spaces around wires, pipes, ducts, vents, cable lines, and other services, with backing materials used where the approved detail requires them.
The design of the full penetration remains the deciding factor. Opening dimensions, service material, backing, seal depth, and surrounding construction should all correspond with the applicable tested detail.
Maintaining System Integrity at Interfaces
Fire safety in a ceiling depends on details that are easy to miss during a visual inspection. Board edges, perimeter joints, service openings, and connections to other rated elements all need to remain consistent with the specified assembly.
That makes installation quality and coordination as significant as product selection. Site teams should work from the approved system details and check that later trades do not cut openings or alter components without reviewing the fire-stopping requirement.
Mada Gypsum provides plasterboards, ceiling systems, framing, and finishing products for drywall construction. Project teams can learn more about us or contact us when reviewing suitable system options and technical information.
A fire-rated ceiling system performs as a complete assembly. Selecting the correct plasterboard is the starting point, but the required fire resistance also depends on framing, fixings, joints, perimeters, and penetrations being installed as specified. Keeping those details consistent with the tested construction gives designers, consultants, and contractors a clearer route from the fire strategy to the finished ceiling.
