Mada Monolithic
CEILING SYSTEMS
Discover the pinnacle of performance with Mada Gypsum ceiling systems, meticulously crafted from high-quality materials to deliver unmatched resilience against fire and moisture, coupled with enhanced acoustics and thermal insulation.
Angle Fixation
Fire Rating
Not Rated
Board Thickness
1 x 12.5 Regular Plasterboard
Main Channel Centers
900mm
Furring Channel Centers
400mm
Threaded Rod Fixation
1 hour fire rating solution
Fire Rating
EN1364-2: 60 min
Board Thickness
2 x 16 Fire Resistant
Insulation
50mm Rockwool (40 Kg/m3)
Main Channel Centers
900mm
Furring Channel Centers
400mm
Threaded Rod Fixation
2 hour fire rating solution
Fire Rating
EN1364-2: 120 min
Board Thickness
4 x 16 Fire Resistant
Insulation
50mm Rockwool (40 Kg/m3)
Main Channel Centers
900mm
Furring Channel Centers
400mm

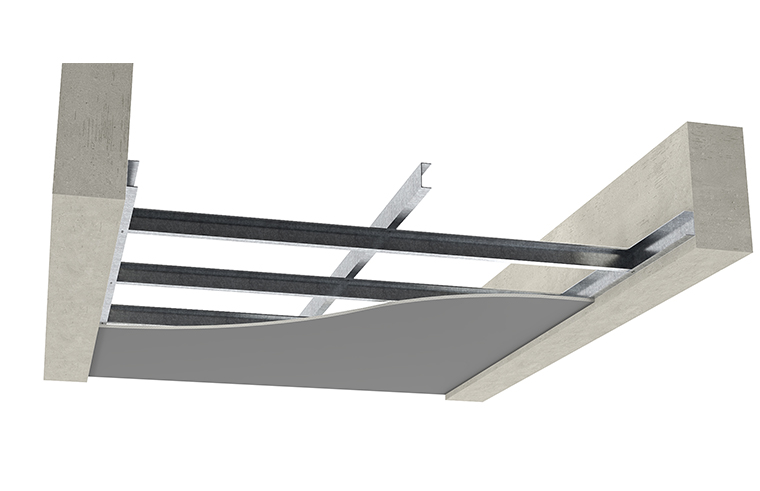

Corridor Spanning System
48mm ‘C’ stud
68mm ‘C’ stud
98mm ‘C’ stud
148mm ‘C’ stud
68mm ‘C’ stud
98mm ‘C’ stud
148mm ‘C’ stud
build smarter partition systems
Download our complete System Guide for specifications, performance insights, and best practice installation.
